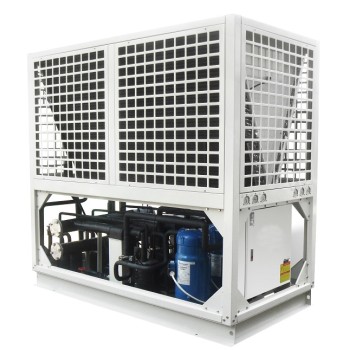

75-110kw Eco friendly commercial use large capacity air to water heat pump
- group name
- Commercial heat pump
- Min Order
- 1 set
- brand name
- REAL POWER
- model
- ESDAW-80CV/110CV
- Nearest port for product export
- Guangzhou, Shenzhen, Foshan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, Express Delivery
- Acceptable payment methods
- T/T, L/C, Westem Union, Cash
- Export mode
- Export through agents
- update time
- Wed, 11 Nov 2020 18:45:13 GMT
Paramtents
Color White
Compressor Panasonic
Heat exchanger Plate heat exchanger
Throttling device Electronic expansion valve
Controller Lcd intelligent controller
Refrigerant R407C/R410A
Function Heating or cooling
Sample Available
Packging & Delivery
- 219cm x144cm x219cm
-
Min Order1 set
Briefing
75-110kw commercial use large capacity air to water heat pump
Heating or cooling
Panasonic compressor
Plate heat exchanger
Heating or cooling
Panasonic compressor
Plate heat exchanger
Detailed
75-110kw Eco friendly commercial use large capacity air to water heat pump
Specification
| ESDAW-80CV | ESDAW-110CV | ||
| Heating capacity | KW | 80 | 110 |
| Heating power input | KW | 22.9 | 31.4 |
| Hot water supply | L/h | 1720 | 2365 |
| Rated current | A | 34.9 | 47.8 |
| COP | 3.49 | 3.50 | |
| Max. water temperature | ℃ | 60 | 60 |
| Rated water temperature | ℃ | 55 | 55 |
| Water flow | m3/h | 13.80 | 18.90 |
| Water pressure drop | Kpa | 50 | 55 |
| Water connections | Inch | 3" | 3" |
| Compressor | Brand | Panasonic | Panasonic |
| Quantity | 3 | 4 | |
| Power supply | 380V/3PH/50Hz | 380V/3PH/50Hz | |
| Noise | dB(A) | 68 | 71 |
| Net weight | kg | 750 | 800 |
| Gross weight | kg | 780 | 830 |
| Net dimensions | mm | 2190*1440*2060 | 2190*1440*2060 |
| Packing dimensions | mm | 2220*1470*2190 | 2220*1470*2190 |
