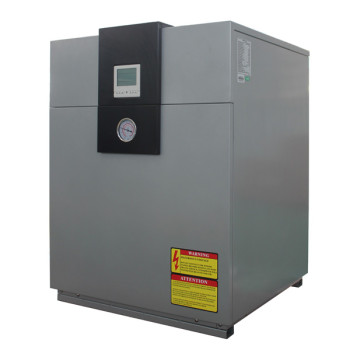

25·40kw renewable energy water source heat pump
- group name
- Ground source heat pump
- Min Order
- 5 set
- brand name
- REAL POWER
- model
- ESDWW-27X/34X/41X
- Nearest port for product export
- Guangzhou, Shenzhen, Foshan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, Express Delivery
- Acceptable payment methods
- T/T, L/C, Westem Union, Cash
- Export mode
- Export through agents
- update time
- Tue, 01 Dec 2020 10:36:26 GMT
Paramtents
Color white, grey
Compressor Panosonic
Heat exchanger Plate heat exchanger
Throttling device Electronic expansion valve
Controller Lcd intelligent controller
Refrigerant R410A
Custom color Available
Sample Available
Packging & Delivery
- 90cm x68cm x95cm
-
Min Order5 set
Briefing
25·40kw renewable energy water source heat pump
Panosonic compressor
R410a
Stable heating efficiency
Panosonic compressor
R410a
Stable heating efficiency
Detailed
25·40kw renewable energy water source heat pump
Specification
| Model | ESDWW-27X | ESDWW-34X | ESDWW-41X | |
| Heating capacity W10/W35 (1) | KW | 24.40 | 30.85 | 36.88 |
| Heating power input W10/W35 | KW | 5.22 | 6.68 | 7.98 |
| COP W10/W35 | 4.67 | 4.62 | 4.62 | |
| Heating capacity W10/W55 (2) | KW | 21.80 | 27.48 | 32.89 |
| Heating power input W10/W55 | KW | 6.91 | 8.74 | 10.49 |
| COP W10/W55 | 3.15 | 3.14 | 3.14 | |
| Max. water temperature | ℃ | 60 | 60 | 60 |
| Rated water temperature | ℃ | 55 | 55 | 55 |
| Water flow (Heating side) | m3/h | 4.6 | 6.1 | 6.8 |
| Water flow (ground source side) | m3/h | 4.8 | 6.5 | 7.2 |
| Water pressure drop | Kpa | 32 | 34 | 36 |
| Noise | dB(A) | 42 | 44 | 44 |
| Water connections | Inch | 1-1/2" | 1-1/2" | 1-1/2" |
| Net weight | kg | 170 | 180 | 190 |
| Gross weight | kg | 195 | 205 | 215 |
| Net dimensions | mm | 850*615*800 | 850*615*800 | 850*615*800 |
| Packing dimensions | mm | 900*680*950 | 900*680*950 | 900*680*950 |
