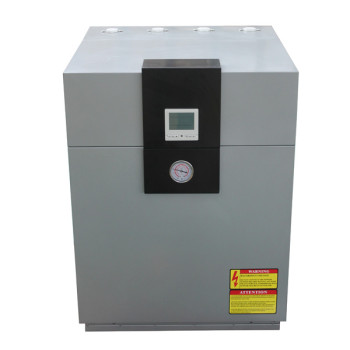

13~20kw ground source heat pump water to water heat pump geothermal heat pump
- group name
- Ground source heat pump
- Min Order
- 5 set
- brand name
- REAL POWER
- model
- ESDWW-13X/17X/20X
- Nearest port for product export
- Guangzhou, Shenzhen, Foshan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, Express Delivery
- Acceptable payment methods
- T/T, L/C, Westem Union, Cash
- Export mode
- Export through agents
- update time
- Wed, 23 Sep 2020 19:23:58 GMT
Paramtents
Color white, grey
Compressor Panasonic
Heat exchanger Plate heat exchanger
Throttling device Electronic expansion valve
Controller Lcd intelligent controller
Refrigerant R410A
Custom color Available
Sample Available
Packging & Delivery
- 64cm x66cm x95cm
-
Min Order5 set
Briefing
13~20kw ground source heat pump
water to water heat pump
geothermal heat pump
Panasonic compressor
Heating or cooling
water to water heat pump
geothermal heat pump
Panasonic compressor
Heating or cooling
Detailed
13~20kw ground source heat pump water to water heat pump geothermal heat pump
Specification
| Model | ESDWW-13X | ESDWW-17X | ESDWW-20X | |
| Heating capacity W10/W35 (1) | KW | 12.20 | 15.50 | 18.50 |
| Heating power input W10/W35 | KW | 2.61 | 3.32 | 3.96 |
| COP W10/W35 | 4.67 | 4.67 | 4.67 | |
| Heating capacity W10/W55 (2) | KW | 10.86 | 13.80 | 16.47 |
| Heating power input W10/W55 | KW | 3.45 | 4.38 | 5.23 |
| COP W10/W55 | 3.15 | 3.15 | 3.15 | |
| Max. water temperature | ℃ | 60 | 60 | 60 |
| Rated water temperature | ℃ | 55 | 55 | 55 |
| Water flow (Heating side) | m3/h | 2.30 | 3 | 3.4 |
| Water flow (ground source side) | m3/h | 2.50 | 3.20 | 3.6 |
| Water pressure drop | Kpa | 24 | 28 | 30 |
| Noise | dB(A) | 41 | 41 | 42 |
| Water connections | Inch | 1'' | 1'' | 1'' |
| Net weight | kg | 90 | 105 | 130 |
| Gross weight | kg | 105 | 120 | 145 |
| Net dimensions | mm | 600*615*800 | 600*615*800 | 600*615*800 |
| Packing dimensions | mm | 640*660*950 | 640*660*950 | 640*660*950 |
